BeYond venous

Thrombosis is known to be a wide spread disease. Venous stenting is proven to have a positive impact on the quality of life, especially of young and active people. The BeYond venous stent is designed to respect the natural venous anatomy to ensure the optimal balance between radial force, flexibility and deployment behaviour.

Self-Expanding Stent System

Optimized radial force

developed to restore reliable blood flow in the affected vessel

Effortless flexibility

Enhanced performance and kink resistance to adapt to the venous anatomy

Accurate deployment

ensuring predictable landing zone and minimal foreshortening

Indication

The BeYond Venous Self-Expanding Stent System is indicated for endovascular treatment of patients with symptomatic obstructions of the femoral vein or iliac vein.

For full information, please see Instructions for Use.

Downloads

Brochure

Technical specifications

Catheter

0.035" OTW

Catheter Shaft Length

100 cm for all sizes

Introducer sheath compatibility

10 F for all sizes

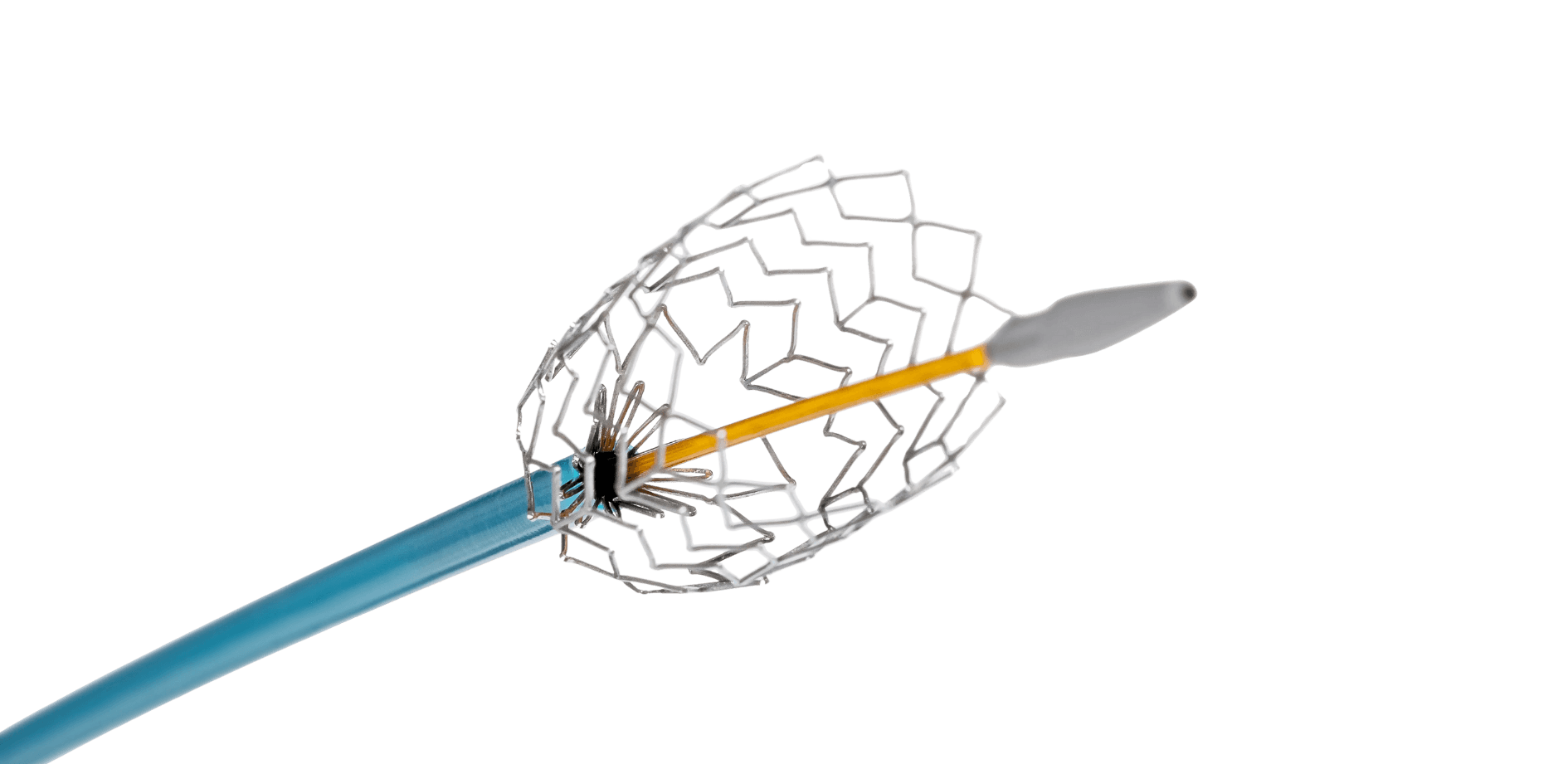

Delivery System

Pull-back technique with radiopaque marker behind catheter tip

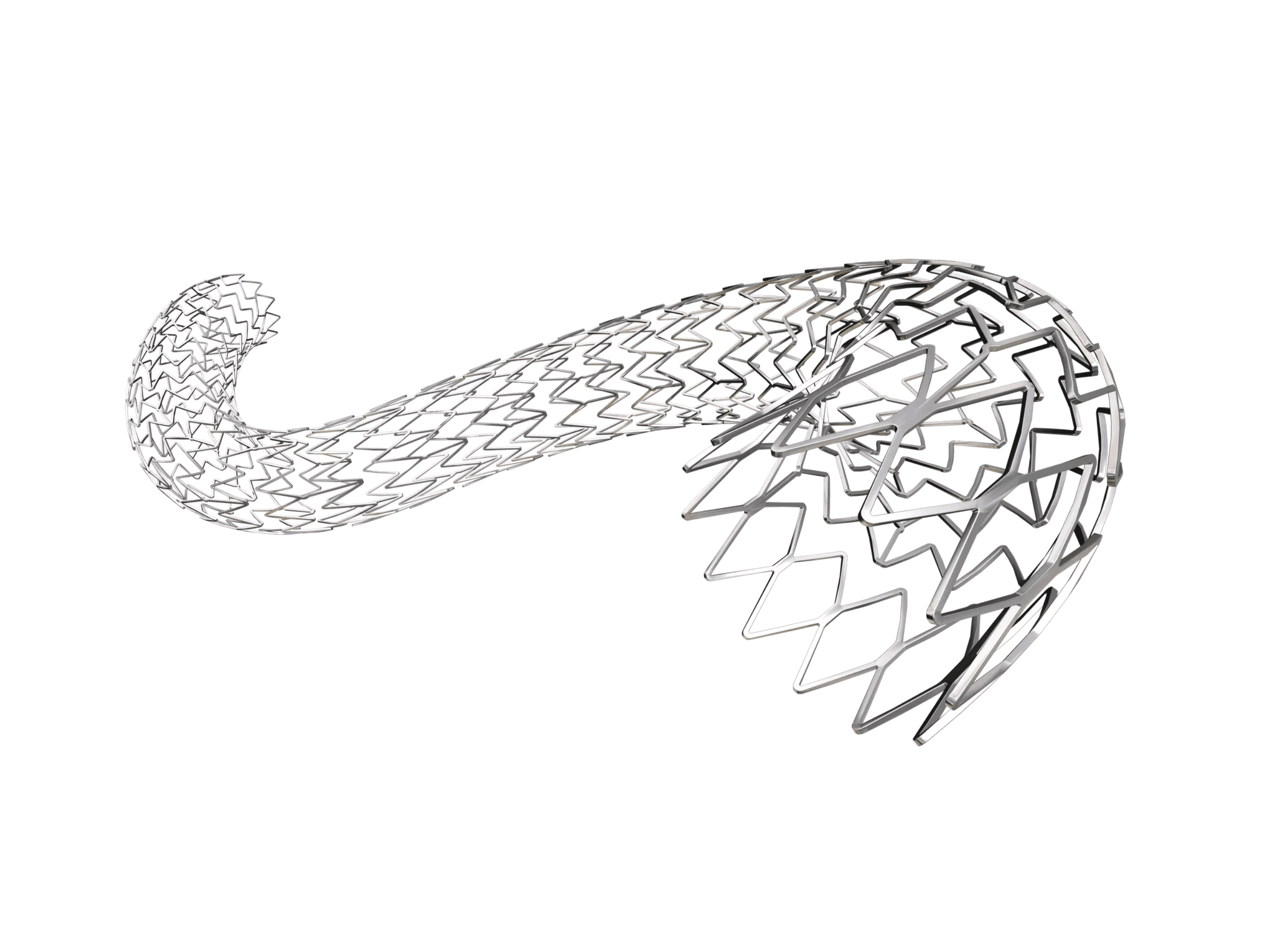

Stent

Open-cell design, closed-cell stent ends

Nickel-Titanium alloy (Nitinol)

Stent lengths

60 - 150 mm

Catheter Shaft Length

100 cm for all sizes

Stent Diameter

10 - 18 mm

Shelf life

3 years

Ordering information

Stent Diameter

Nominal Stent Length	Introducer Sheath Size	Catheter Shaft Length	Catalogue Number
60 mm	10 F	100 cm	BYV06010
80 mm			BYV08010
100 mm			BYV10010
120 mm			BYV12010
150 mm			BYV15010

Stent Diameter	Nominal Stent Length	Introducer Sheath Size	Catheter Shaft Length	Catalogue Number
10 mm	60 mm	10 F	100 cm	BYV06010
	80 mm			BYV08010
	100 mm			BYV10010
	120 mm			BYV12010
	150 mm			BYV15010
12 mm	60 mm	10 F	100 cm	BYV06012
	80 mm			BYV08012
	100 mm			BYV10012
	120 mm			BYV12012
	150 mm			BYV15012
14 mm	60 mm	10 F	100 cm	BYV06014
	80 mm			BYV08014
	100 mm			BYV10014
	120 mm			BYV12014
	150 mm			BYV15014
16 mm	60 mm	10 F	100 cm	BYV06016
	80 mm			BYV08016
	100 mm			BYV10016
	120mm			BYV12016
	150mm			BYV15016
18 mm	60 mm	10 F	100 cm	BYV06018
	80 mm			BYV08018
	100 mm			BYV10018
	120 mm			BYV12018
	150 mm			BYV15018
