BeGraft peripheral PLUS

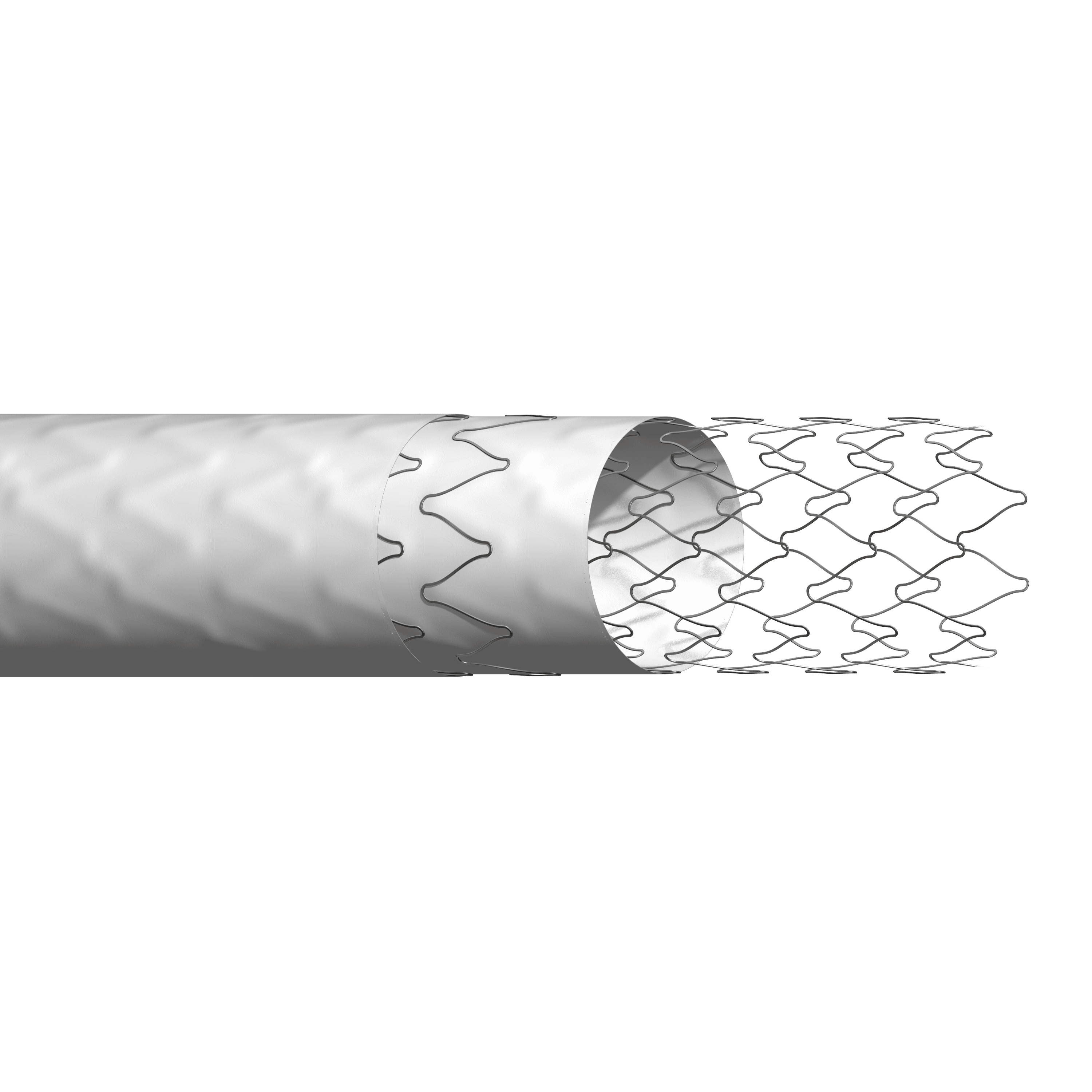

Performance where no comparison is possible. The world’s unique and patented double Cobalt-Chromium (CoCr) stent graft with double ePTFE that offers you extensive treatment options in endovascular interventions.
Learn more
through unique sandwich design
through high flexibility
through increased radial force
Indication
The BeGraft peripheral Plus Stent Graft System is indicated for intraluminal chronic placement in iliac and renal arteries for:
Restoring and improving the patency
Treating aneurysms, acute perforations, acute ruptures and fistulas
For full information, please see Instructions for Use.
Technical specifications
Catheter
PTA catheter
0.035" OTW
Catheter lengths
120 cm
Introducer sheath compatibility
up to ø 8 mm | 7 F |
ø 9 mm and 10 mm | 8 F |
Stent
Design
Open-cell CoCr (L-605) |
Unique stent-in-stent |
Stent lengths
27 - 58 mm
Two ePTFE covers
Patented ePTFE cover fixation at both stent ends
Three different stent designs:
At nominal pressure: | |
Small Vessel design (SV) | ø 5 - 6 mm |
Medium Vessel design (MV) | ø 7 - 8 mm |
Large Vessel design (LV) | ø 9 - 10 mm |
Shelf life
3 years
Ordering information
Nominal Stent Graft Length | Introducer Sheath Size | Catalogue Number for Catheter Length |
|---|---|---|
120 cm |
Expanded Stent Graft Diameter | Nominal Stent Graft Length | Introducer Sheath Size | Catalogue Number for Catheter Length |
|---|---|---|---|
120 cm | |||
5 mm | 28 mm | 7 F | BGP+2805_2 |
38 mm | BGP+3805_2 | ||
58 mm | BGP+5805_2 | ||
6 mm | 28 mm | 7 F | BGP+2806_2 |
38 mm | BGP+3806_2 | ||
58 mm | BGP+5806_2 | ||
7 mm | 27 mm | 7 F | BGP+2707_2 |
37 mm | BGP+3707_2 | ||
57 mm | BGP+5707_2 | ||
8 mm | 27 mm | 7 F | BGP+2708_2 |
37 mm | BGP+3708_2 | ||
57 mm | BGP+5708_2 | ||
9 mm | 27 mm | 8 F | BGP+2709_2 |
37 mm | BGP+3709_2 | ||
57 mm | BGP+5709_2 | ||
10 mm | 27 mm | 8 F | BGP+2710_2 |
37 mm | BGP+3710_2 | ||
57 mm | BGP+5710_2 |
