BeBack crossing catheter

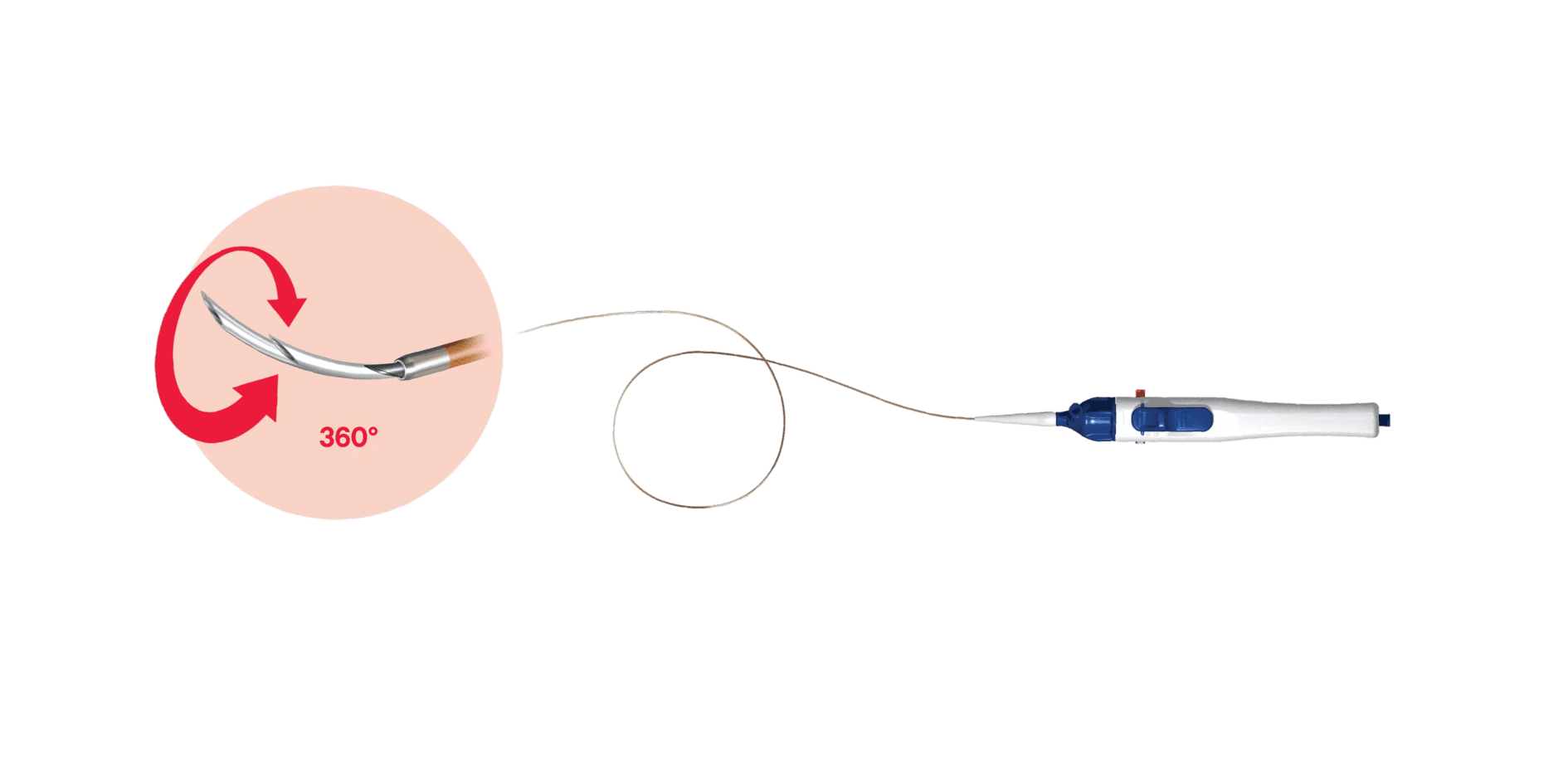

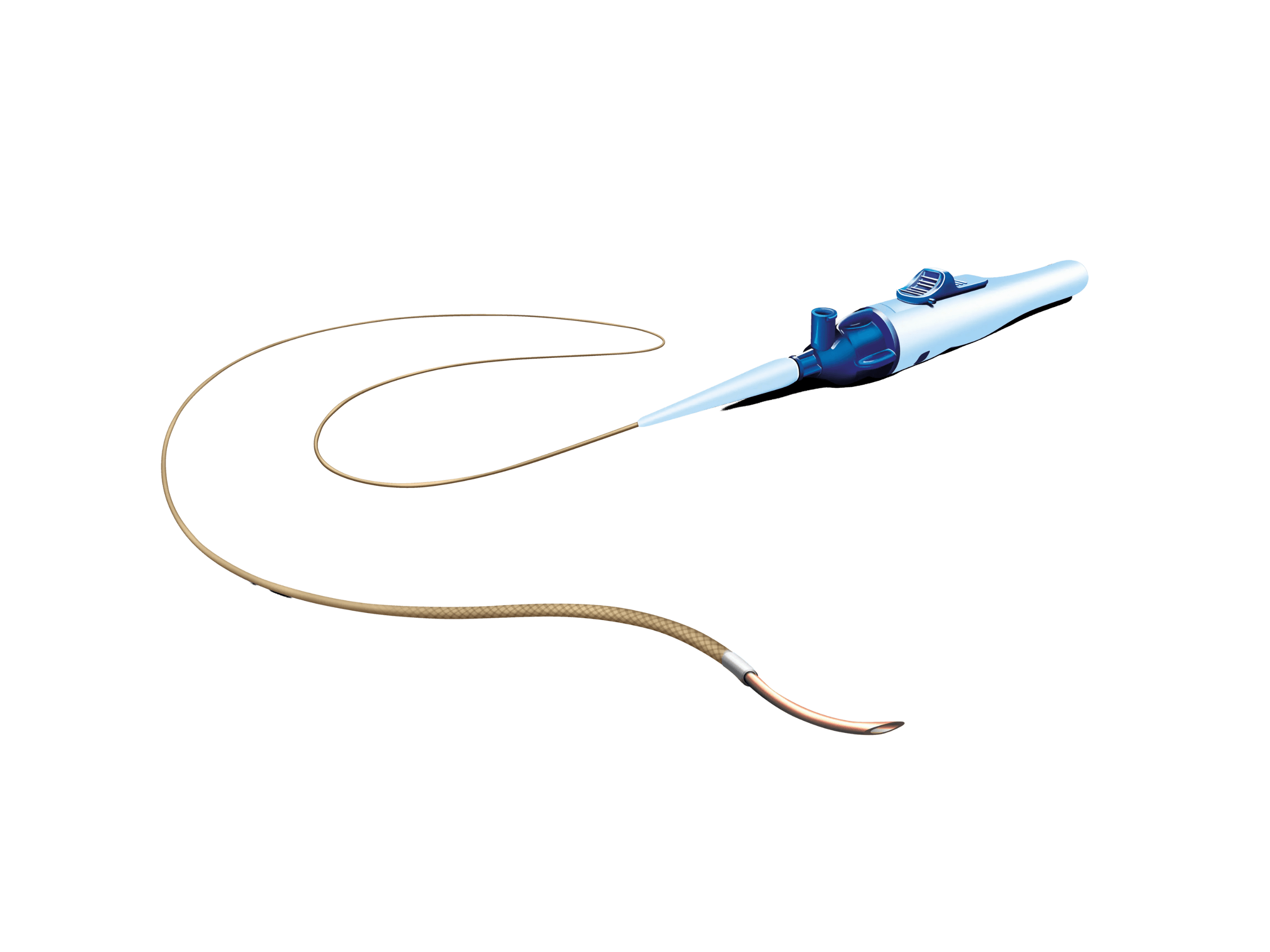

Cross chronic total occlusions with success. The BeBack crossing catheter is a low profile support catheter that has a crossing and targeted re-entry capability with a length-adjustable and 360° rotational Nitinol needle. The c-shaped radiopaque marker indicates in which direction the curved needle protrudes from the tip of the catheter.
Learn more
for retrograde, antegrade, and crossover approach
for support, crossing, and re-entry
in adjustable length, and direction
Indication
BeBack crossing catheter is to be used in conjunction with a steerable guidewire to access discrete regions of the peripheral vasculature. It may be used to facilitate placement and exchange of guidewires.
For full information, please see Instructions for Use.
Technical specifications
BeBack crossing catheter 2.9 F
Introducer sheath compatibility
2.9 F |
5 F for crossover |
Guide wire
0.014"
Needle lengths
3 mm (straight) |
7 mm (curved) |
Needle profile
23.8 gauge
Rotation
360°
Catheter lengths
80 & 120 cm
Needle material
Nickel-Titanium alloy (Nitinol)
Marker
Radiopaque c-shaped marker, opening of the C indicates needle direction
BeBack crossing catheter 4 F
Introducer sheath compatibility
4 F |
6 F for crossover |
Guide wire
0.018"
Needle lengths
3 mm (straight) |
7 mm (curved) |
11 mm (curved) |
Needle profile
21.5 gauge
Rotation
360°
Catheter lengths
80 & 120 cm
Needle material
Nickel-Titanium alloy (Nitinol)
Marker
Radiopaque c-shaped marker, opening of the C indicates needle direction
Ordering information
Catheter Length | Catalogue Number |
|---|---|
80 cm | GB 603 014P 80L |
Introducer Sheath Size | Catheter Length | Catalogue Number |
|---|---|---|
2.9 F | 80 cm | GB 603 014P 80L |
2.9 F | 120 cm | GB 603 014P 120L |
4.0 F | 80 cm | GB 600 018P 80L |
4.0 F | 120 cm | GB 600 018P 120L |
